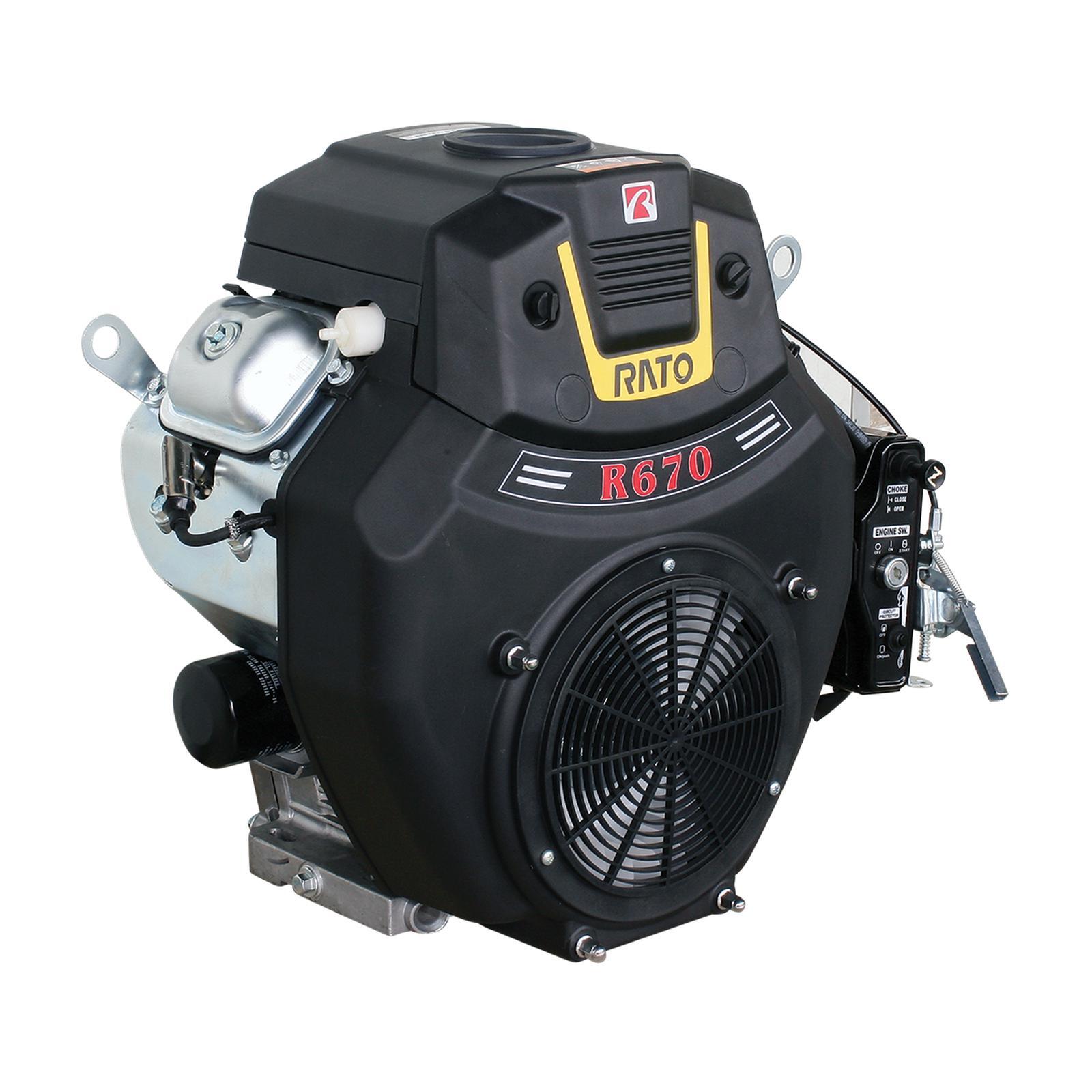

RATO 22HP 669cc 4-Stroke OHV V-Twin Engine | 25.4mm Horizontal Shaft | R670D

RATO

RATO 22HP 669cc 4-Stroke OHV V-Twin Engine | 25.4mm Horizontal Shaft | R670D

$2,110.95

SKU: R670D

Quantity:
AfterPay

4 interest-free payments.

Zip

Zip it from $10/week.

Power your toughest equipment with confidence using the RATO 22hp 25.4mm Horizontal Shaft Engine (R670D), available now at The Grit. This robust 4-stroke OHV V-Twin engine is engineered for serious grunt, delivering a commanding 18.22kW of net power at 3600rpm and an impressive 52.9Nm of net torque at 2,500rpm. Its V-Twin cylinder design ensures smooth, balanced operation across a wide range of applications, from commercial mowers to chippers and generators. Forget strenuous pull-starts; the convenient electric start feature gets you working faster, every time. With its versatile 25.4mm horizontal shaft, this RATO engine is ready for seamless integration into your heavy-duty machinery. Backed by a 2-year/500-hour domestic warranty, you can rely on its enduring performance to get the job done right, day after day.


Features

  • 22 HP 4 stroke OHV engine – 669cc
  • Electric Start
  • Net Power: 18.22kw (3600rpm)
  • Net Torque: 52.9Nm (2,500rpm)

Model # R670D
Brand RATO
Shipping Weight 45.0000kg
Type OHV Engine
Weight 45 kg
Bore x Stroke 78 x 70mm
Compression Ratio 8.5:1
Displacement 669cc
Starting System Electric
Dimensions 550 x 460 x 345 mm
Manufacturer Warranty 2 Years / 500 Hours Warranty
Net Power 18.22kW / 3600rpm
Net Torque 52.9N.m / 2500rpm
Shaft Orientation Horizontal
Pto Shaft Rotation CCW
Shaft Size 25.4mm (1")
